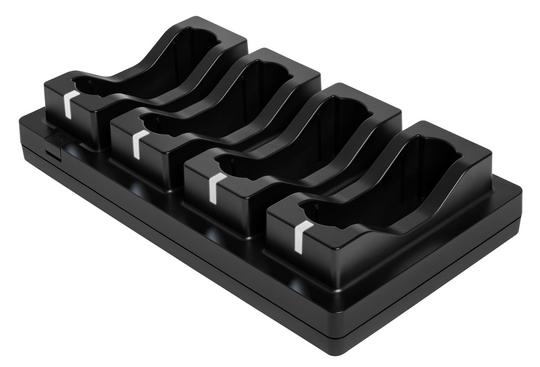

RRC-SMB-4BC
4-bay standard battery charger for SMBus-compatible batteries
- Smart 100W charger with 4 charging slots
- Special mode for prioritized charging of a battery, activated by push button
- LED ring to indicate the prioritized charging slot
- Multifunctional LED display on each charging slot for clear status indication of each battery
- For standard battery formats RRC203x, RRC204x, and RRC205x
- Longer service life thanks to battery life management
- Faster and more efficient charging
- Automatic identification of battery type and adjustment of charging parameters
- Easy to use - plug-and-play - ready for immediate use without configuration
- External power supply (RRC-PS100) for worldwide use included
- Country-specific AC input cables available
詳しい情報をお求めですか？
製品データシート RRC-SMB-4BC
Specification RRC-SMB-4BC
| Input | |
|---|---|
| Voltage range | 19.00 - 24.00VDC |
| Current | 5.30A max. |
| Power | 100.00W |
| Protection | Over current (fuse protected), under voltage |
| Output | |
|---|---|
| Voltage range | 0 - 17.40VDC |
| Current | 0 – 4.70A |
| Voltage tolerance | ±1% max. |
| Current tolerance | ±10% max. @1.00A, ±3% max. @4.00A |
| Charge power | 100.00W max., two charging sources with 50.00W each |
| Protection | Short circuit, Over temperature shutdown, Input / Output over current |
| Environmental | ||
|---|---|---|
| Operation: | Storage: | |
| Ambient Temperature | 0°C to 40°C | -30°C to 80°C |
| Pressure & Altitude | 1060hPa to 533hPa (-382m to 5000m) | 1060hPa to 533hPa (-382m to 5000m) |
| Humidity (non-condensing) | 5% to 90% r.H | 5% to 90% r.H. |
| General | |||
|---|---|---|---|
| Efficiency | ~95% to 100% load | ||
| Battery type | For standard battery packs in form factor RRC203x, RRC204x, RRC205x | ||
| Green procurement | RoHS 2011/65/EU + 2015/863/EU REACH 1907/2006 | ||
| Indicator | Multi-color LED (green, red, yellow, white) | ||
| Cooling | convection cooled | ||
| Housing dimensions (LxWxH) | 220 x 120 x 46 (mm) |
| Weight | ~ 420g (without power supply) |
White blinking (1-2 seconds) | Charger is plugged in |
LED off | Charger is ready for use, and no battery is installed |
| Yellow light | Charger has an error |
| White blinking | Battery is plugged in and recognized |
| White pulsating (slow blinking) | Battery is charging. SoC below 80%. |
| White continuously illuminated | Battery SoC above 80%, charger is still charging |
| Green continuously illuminated | Battery is fully charged |
| Yellow blinking | Reversible errors |
| Red continuously illuminated | The battery has a severe defect, or it is a non-smart battery |
| White light (Illumination ring) | The prioritized charging mode for the left bay is activated: Continuous charging of the left bay at the highest allowed speed. The other bays operate with reduced charging power. |
In combination with included external AC/DC power supply | ||
Regulatory approvals | Europe | EN62368-1 (CE) |
| International | IEC62368-1 (CB) | |
Electromagnetic Emissions | Europe | EN55032, EN55035, level B |
| USA | FCC15, class B | |
| Canada | ICES-003 | |
| Korea | KCC | |
Electromagnetic Immunity | ||
| Electromagnetic field immunity | EN/IEC61000-4-3 | |
| EFT / Burst | EN/IEC61000-4-4 | |
| Surge | EN/IEC61000-4-5 | |
| Conducted Immunity | EN/IEC61000-4-6 | |
| Magnetic Fields | EN/IEC61000-4-8 | |
| Voltage dips, short instrumentations & voltage variations | EN/IEC61000-4-11 | |
Specification external AC/DC power supply (RRC-PS100)
| Input | |
|---|---|
Voltage | 100.00 - 240.00VAC ± 10, 50-60 Hz |
| Current | 1.90A max. |
Stand by power | < 0.15W @ no load |
| Output | |
|---|---|
| Voltage range | 20.00VDC ± 5% |
| Power | 100.00W max. |
| Current range | 5.00A max. |
| Protection | Short circuit, over voltage, over current, over temperature |
Standard output connector | DC barrel jack, 5.50 x 2.50 x 10.00mm |
Housing dimensions (LxWxH) | 127 x 51 x 30mm |
Weight | 325 ± 5% |
| Output Cable length | 1600mm ± 50mm |
| AC input socket | IEC 320 C6 Type |
Regulatory approvals | Europe | EN62368-1 (CE) |
| International | IEC62368-1 (CB) | |
| USA & Canada | FCC, cULus | |
Australia & New Zealand | RCM | |
| Russia & Eurasian Customs Union | EAC | |
| Korea | KC | |
| China | CCC | |
| Japan | PSE | |
| India | BIS | |
| Taiwan | BSMI | |
| Thailand | TISI | |
| Mexico | NOM | |
| Singapore | Safety Mark | |
| Argentina | IRAM | |
| South Africa | SABS | |
| United Kongdom | UKCA | |
| Morocco | CMIM | |
| South Africa | SABS | |
| Israel | SII | |
| Electromagnetic Emissions | Europe | EN55032, EN55035 |
| USA | FCC15 class B | |
| Canada | ICES-003 | |
| Korea | KCC | |
| Electromagnetic Immunity | ESD immunity | EN/IEC61000-4-2 |
| Electromagnetic field immunity | EN/IEC61000-4-3 | |
| EFT / Burst | EN/IEC61000-4-4 | |
| Surge | EN/IEC61000-4-5 | |
| Conducted Immunity | EN/IEC61000-4-6 | |
| Magnetic Fields | EN/IEC61000-4-8 | |
| Voltage dips | EN/IEC61000-4-11 | |
| Energy Efficiency | DOE |
Specification external AC/DC power supply (RRC-PS100)
| General | |
Efficiency | California's Energy Efficiency Level VI |
| Cooling | Convection cooled |
| Green procurement | RoHS 2011/65/EU + 2015/863/EU REACH 1907/2006 WEEE 2012/19/EU Chinese RoHS |
| MTBF | 100,000h at 25°C ambient |
| Ripple & Noise | 380mV (p-p) |
| Environmental | ||
| Operation: | Storage: | |
| Ambient temperature | 0°C to 40°C | -30°C to 80°C |
| Pressure & Altitude | 1060hPa to 533hPa -382m to 5000m | 1060hPa to 533hPa -382m to 5000m |
| Humidity (non-condensing) | 5% to 90% r.H. | 5% to 90% r.H. |
標準バッテリー充電器RRC-SMB-4BCは世界中で認可を受けています
