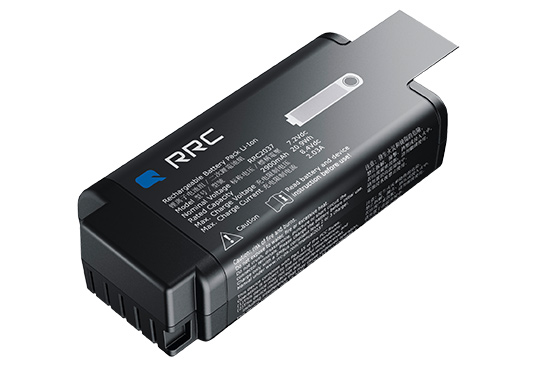

Picture only for reference

RRC2037

標準バッテリーパックRRC2037 (2S1P)
(7.20V/3.35Ah/24.12Wh)

  • 世界中で認可を受け、安全規格を遵守
  • 開発コストがかからず、市場に出るまでの時間を短縮
  • SMBus仕様に基づく数多くの機能を備えたスマートバッテリー
  • LEDの充電状態インジケーター内蔵
  • 最高のエネルギー密度を持つ最新のリチウム電池
  • 高い放電電流
  • JEITA充電プロファイル最適化
  • 数多くの冗長性安全機能
  • バッテリーライフマネージメント:急激なセルの老化からの保護
  • 最大8.00kVまで静電気放電保護を増加
  • 800サイクル後、最初の容量の最大80%まで

以下の製品情報およびダウンロードはそれぞれRRC2037の最新バージョンなのでご注意ください。以前のバージョンはこちらにあります。

詳しい情報をお求めですか?

製品データシート RRC2037

General
Delivery status (battery capacity)<30%

Compliance information

IEC62133 / CE / UL2054 / FCC / UKCA / PSE / KC / BSMI / Gost-R / CMIM / CQC / RCM / BIS / TISI / CAN ICES-003(B) / NMB-003(B) / UN38.3 / RoHS / REACH

Operating temperature0°C to 45°C (charge)
-20°C to 60°C (discharge)

Storage temperature

-20°C to 50°C max.
-20°C to 25°C recommended

Communication bus

SMBus

Electrical Parameters

Nominal voltage

7.20V

Nominal capacity

3.35Ah

Initial impedance

Max. 120mΩ @ 1kHz at 25°C

Max. charge current

2.03A

Max. charge voltage

8.40V

Max. discharge current4.50A

Battery cell configuration

2S1P

Battery chemistry

Lithium Ion (Li-Ion)

Battery Dimensions

Length (min. – max.)

85.39mm +0.40/-0.40

Width (min. – max.)

41.99mm +0.40/-0.40

Thickness (min. – max.)

22.40mm +0.40/-0.25

Weight

121g

Contacts

+, C, D, T, -

Ingress protectionIP40
Safety Feature

CUV (Cell Under Voltage)

Protection against deep discharge

COV (Cell Over Voltage)

Protection against over charge

OTC (Over Temperature in Charge)

Protection against overheating while charging

OTD (Over Temperature in Discharge)

Protection against overheating during discharging


POWERPAQ RRC2037は世界中で認可を受けています
