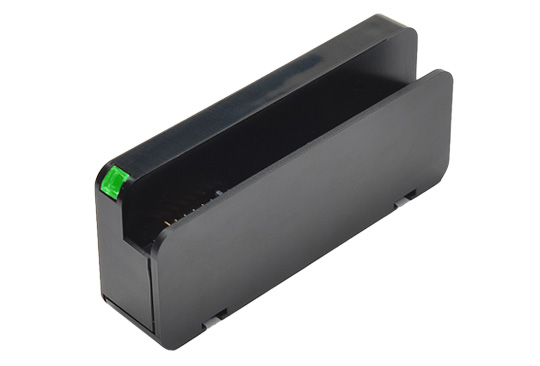

RRC-SMB-FPC

RRC2130、RRC2140用40Wバッテリー充電器

  • シングルベイバッテリー充電器
  • 標準バッテリーパック RRC2130およびRRC2140に対応
  • RRCバッテリー用に最適化された充電プロセス:
    • サイクル寿命の向上
    • 充電のスピードアップ
  • プラグ&プレイで簡単な操作が可能
  • 世界中で使用できる電源アダプター
  • ご要望に応じて各国特有のAC入力ケーブルが利用可能

詳しい情報をお求めですか?

製品データシート RRC-SMB-FPC

Specification RRC-SMB-FPC

Input
Voltage18.00 - 26.00VDC
Current2.50A max.
Power40.00W
ProtectionOver current (fuse protected), under voltage
Output
Voltage range

0 - 17.40VDC

Current range

0 - 4.00A

Voltage tolerance±1% max.
Current tolerance

±10% max. @1.00A, ±3% max. @4.00A

Protection

Short circuit, Over temperature shutdown, Input/output over current

Environmental
CoolingConvection cooled
Temperature

Operating: 0°C bis 40°C
Non-operating: -10°C to 70°C

Pressure & Altitude

Operating: 1060hPa to 795hPa (-382m to 2000m)
Non-operating: 1060hPa to 533hPA (-382m to 5000m)

HumidityOperating: 8% to 90% r.H.
Non-operating: 5% to 95% r.H.
General
Efficiency~95% at 100% load
IndicatorMulti-color LED (green, red, orange)
Battery type

Standard battery packs RRC2130 and RRC2140

Green procurementRoHS 2011/65/EU
WEEE 2012/19/EU
Chinese RoHS
Housing dimensions (LxWxH)

88.50 x 38.50 x 19.90mm

Weight36g (excluding power supply)

One time Red/Orange/Green

Selftest: Charger is ready for use

Red/Green blinking

Battery recognition and initialization

Orange light

The inserted battery is of the correct type and is currently being charged

Green light

The battery is charged and can be removed for use

Red blinking

Battery detection phase

Red light

No battery inserted, battery over/under temperature-, charger over temperature-,
battery over voltage-, battery charge timer time-out-error or input voltage too low



In combination with included external AC/DC power supply (PS65)



Regulatory approvals

EuropeEN62368-1 (CE)
 InternationalIEC62368-1 (CB)

Electromagnetic Emissions

Europe

EN55032

 USAFCC15 class B

Electromagnetic Immunity

ESD immunityEN/IEC61000-4-2
 Electromagnetic field immunity EN/IEC61000-4-3
 EFT / BurstEN/IEC61000-4-4
 Surge

EN/IEC61000-4-5

 Conducted Immunity

EN/IEC61000-4-6

 Voltage dips, short instrumentations & voltage variationsEN/IEC61000-4-11
 Harmonic current emissionsEN/IEC61000-3-2
 Voltage changes, voltage fluctuations and flickerEN/IEC61000-3-3
 Immunity characteristicsEN55035

Specification external AC/DC power supply (PS65)

Input

Voltage range

100.00 - 240.00VAC ±10%, 50-60Hz

Current

1.70A max.

Stand by power

< 0.21W @ no load
Output
Voltage range

19.00VDC ± 5%

Power

65.00W max.

Current range

3.42A max.

Protection

Over voltage, over current, short circuit, over temperature

Environmental
Temperature

Operating: 0°C to 40°C
Non-operating: -10°C to 70°C

General
Efficiency

California's Energy Efficiency Level VI

Ripple & Noise

0.30V (p-p)

Standard output connector

DC barrel jack (5.50 x 2.50 x 11.00mm)

Housing dimensions (LxWxH)

95.00 x 50.00 x 25.40mm

Weight

270g

Cable length1600mm ±50mm

Approvals

EuropeCE
 InternationalCB


USA & Canada

cULus


Australia & New Zealand

RCM
 Russia & Eurasian Customs UnionEAC
 KoreaKC
 ChinaCCC
 JapanPSE
 IndiaBIS
 TaiwanBSMI
 MexicoNOM
 SingaporeSafety Mark
 United KingdomUKCA
 MoroccoCMIM

標準バッテリー充電器RRC-SMB-FPCは世界中で認可を受けています

適当なRRC製品 RRC-SMB-FPC
