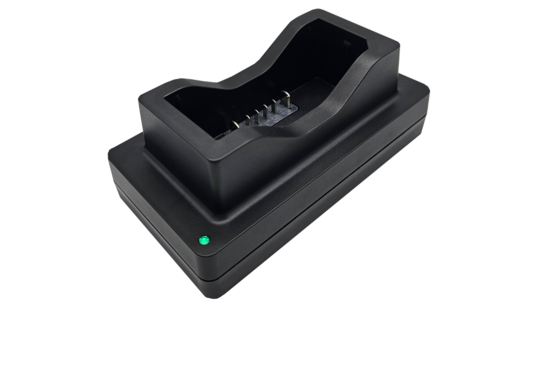

RRC-SMB-HBC

SMBus対応バッテリー用標準充電器

  • 100W急速シングルベイ充電器
  • RRC3570標準バッテリーパック用
  • RRCバッテリー用に最適化された充電プロセス:
    • より長いサイクル寿命
    • より速い充電
  • 簡単操作 - プラグアンドプレイ
  • 世界中で使用できる外部電源
  • 各国のAC入力ケーブルに対応

詳しい情報をお求めですか?

製品データシート RRC-SMB-HBC

Specification RRC-SMB-HBC

Input
Voltage range19.00 - 24.00VDC
Current5.3A max.
Power

100.00W max. (dependent on power supply)

Output
Voltage range

0 - 29.40VDC

Current

0 – 4.20A

Voltage tolerance±1% max.
Current tolerance

±10% max. @1.00A, ±3% max. @4.00A

Charge power

90.00W max.

Protection

Short circuit, overtemperature shutdown,
Input / output overcurrent

Environmental
CoolingConvection cooled
Ambient temperature

Operating: 0°C bis 40°C
Storage: -30°C to 80°C

Pressure & altitude

Operating: 1060hPa to 795hPa (-382m to 2000m)
Storage: 1060hPa to 533hPA (-382m to 5000m)

Humidity (non-condensing)Operating: 8% to 90% r.H.
Non-operating: 5% to 95% r.H.
General
Efficiency~95% to 100% load
Battery type

Standard battery form factors RRC35xx or smart batteries with a similar footprint

Green procurement

RoHS 2011/65/EU + 2015/863/EU
REACH 1907/2006
WEEE 2012/19/EU
Chinese RoHS

IndicatorMulti-color LED
Housing dimensions (LxWxH)125 x 67 x 53mm
Weight70g (excluding power supply)

White blinking (1-2 seconds)

Charger is plugged in

LED offCharger has been recognized, is ready for use or no battery is installed
Yellow lightCharger has an error
White blinkingBattery is plugged in and recognized
White pulsating (slow blinking)Battery is charging. SoC below 80%
White continuously illuminatedBattery is charged from 80% SoC
Green continuously illuminatedBattery is fully charged
Yellow blinkingReversible errors
Red continuously illuminatedBattery has a severe defect, or is not a smart battery





In combination with included external AC/DC power supply



Regulatory approvals

EuropeEN62368-1 (CE)
 InternationalIEC62368-1 (CB)

Electromagnetic emissions

EuropeEN55011, EN55032, level B
 USAFCC15 class B
 CanadaICES-003, class B

Electromagnetic immunity

ESD immunityEN/IEC61000-4-2
 Electromagnetic field immunity EN/IEC61000-4-3
 EFT / burstEN/IEC61000-4-4
 Surge

EN/IEC61000-4-5

 Conducted immunity

EN/IEC61000-4-6

 Magnetic fields

EN/IEC61000-4-8

 Voltage dips, short instrumentations & voltage variations

EN/IEC61000-4-11

 Immunity characteristics

EN55035

Specification external AC/DC power supply

Input

Voltage range

100.00 - 240.00VAC ±10%, 50-60Hz

Current

1.90A max

Standby power

0.15W @ no load
Output
Voltage range

20.00VDC ± 5%; Ripple < 380mVpk-pk

Power

100.00W max.

Current range

5A max.

Protection

Short circuit, over-voltage, over-current, over temperature

General
Efficiency

California's Energy Efficiency Level VI

Ripple & noise

380mV (p-p)

Standard output connector

DC barrel jack, 5.50 x 2.50 x 11.00mm

Housing dimensions (LxWxH)

127 x 51 x 30mm

Weight

400g max.

Cable length1500 mm +/-50

Approvals

EuropeCE
 InternationalCB
 USA & CanadacULus
 Australia & New ZealandRCM
 Russia & Eurasian Customs UnionEAC
 KoreaKC
 ChinaCCC
 JapanPSE
 IndiaBIS


Taiwan

BSMI
 MexicoNOM
 ArgentinaIRAM
 South AfricaSABS
 SingaporeSafety Mark
 United KingdomUKCA
 MoroccoCMIM
 IsraelSII
