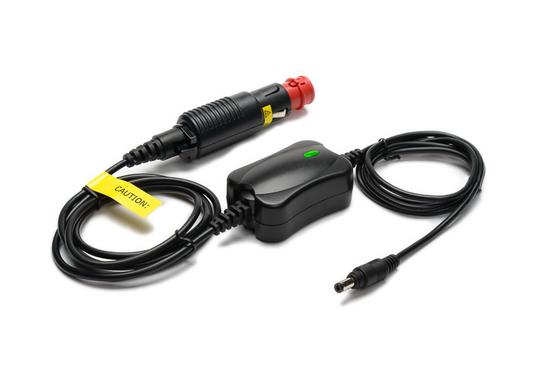

Der 15 Watt Auto-Adapter CAR15A mit Car/Truck Eingangsstecker.

CAR15A

15W自動車用アダプター

  • 9-32Vの広範囲の入力電圧
  • 最大15Wの出力電力
  • カスタム出力コネクター
  • 乗用車/トラック入力コネクター

詳しい情報をお求めですか?

Downloads CAR15A

製品データシート CAR15A

Specification

Input
Voltage range9.00 - 32.00VDC
Standby currentTypical 62.00mA @ 9.00V input
Typical 36.00mA @ 32.00V input
Input fuse3.15A
ProtectionReverse polarity (input fuse),
Output
Voltage range10.00 - 15.00V
Power

15.00W cont.

Initial set tolerance

±3% max.

Load regulation

-4% max.

Line regulation

±1% max.

Ripple & noise

< 0.09V pk-pk

Current limitConstant current
Protection

Short circuit
Over temperature protection

Environmental

CoolingConvection cooled
Temperature

Operating: -20°C to 40°C

Non-operating: -40°C to 85°C

Pressure & altitude

Operating: 1200hPa to 570hPa (max. 4600m above sea level)
Non-operating: 1200hPa to 115hPa (max. 15000m above sea level)

Humidity5 to 95% r.H., non condensing
General
Input connector

Cigarette lighter adapter

Output connector

Customer-specific

Efficiency

typical 85% at 100% load

MTBF

>20000h @ 25°C ambient temperature and GB per MIL-HDBK217F

Green procurementRoHS 2011/65/EU + 2015/863/EU
REACH 1907/2006
WEEE 2012/19/EU
IndicatorSingle green LED
Ingress protection rating

IEC60529, IP40

Regulatory approvalsEuropeCE
 United KingdomUKCA
Electromagnetic emissionsEurope

EN55022 class B

 USA & CanadaFCC15 class B
 Australia & New ZealandRCM
Electromagnetic immunityESD immunity

IEC61000-4-2, 4kV contact, 8kV air

 Electromagnetic field immunity

IEC61000-4-3,80-1000MHz, 10V/m, modulation 80%/200Hz

 Electrical fast transient/burst immunity test

IEC61000-4-4, +/-1kV, 5/50ns

 Surge immunity test

IEC61000-4-5, +/- 1kV, 1.2/50(8/20)μs

 Conducted Immunity

IEC61000-4-6, 0.15-230MHz, 10V, 80%, 1KHz, AM

- Other approvals on request

Housing dimensions (LxWxH)

61.00 x 41.00 x 29.00mm, without cables and connectors

Input cable length

100cm ±5%

Output cable length

100cm ±5%

Weight

44g, without cables and connectors


CAR15A 認可
