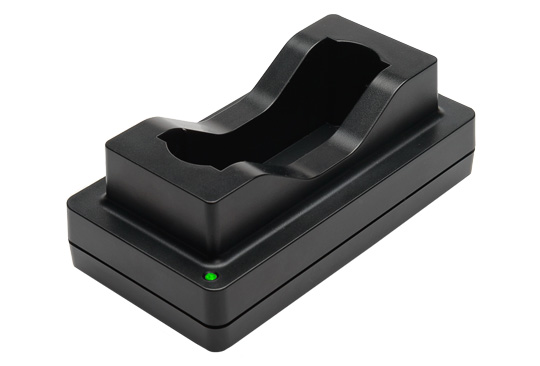

Universelles RRC Standard-Batterieladegerät RRC-SMB-MBC mit Ladeschacht.

RRC-SMB-MBC

SMBus対応バッテリー用汎用標準バッテリー充電器

  • シングルベイの汎用スピード充電器
  • RRC203x, RRC204xおよびRRC205xシリーズ形状の標準バッテリーパック用
  • RRCバッテリー用に最適化された充電プロセス:
    • サイクル寿命の向上
    • 充電のスピードアップ
  • プラグ&プレイで簡単な操作が可能
  • 世界中で使用できる外部AC/DC電源
  • ご要望に応じて各国特有のAC入力ケーブルが利用可能

詳しい情報をお求めですか?

製品データシート RRC-SMB-MBC

Specification RRC-SMB-MBC

Input
Voltage range19.00 - 26.00VDC
Current2.80A max.
Power50.00W
Output
Voltage range

0 - 17.40VDC

Current

0 – 4.80A

Voltage tolerance±1% max.
Current tolerance

±10% max. @1.00A, ±3% max. @4.00A

Protection

Short circuit, Overtemperature shutdown,
Input / Output overcurrent

Environmental
CoolingConvection cooled
Temperature

Operating: 0°C bis 40°C
Non-operating: -30°C to 80°C

Pressure & Altitude

Operating: 1060hPa to 795hPa (-382m to 2000m)
Non-operating: 1060hPa to 533hPA (-382m to 5000m)

HumidityOperating: 8% to 90% r.H.
Non-operating: 5% to 95% r.H.
General
Efficiency~95% to 100% load
Battery type

Standard battery form factors RRC203x, RRC204x and RRC205x or smart batteries with a similar footprint

Green procurementRoHS 2011/65/EU + 2015/863/EU
REACH 1907/2006
WEEE 2012/19/EU
Chinese RoHS
IndicatorMulti-color LED (green, red, orange)
Housing dimensions (LxWxH)

120.00 x 64.00 x 43.00mm

Weight110g (without power supply)

One time Red/Orange/Green

Selftest: Charger is ready for use.

Red/Green blinking

Battery recognition and initialization.

Orange light

The inserted battery is of the correct type and is currently being charged.

Green light

The battery is charged and can be removed for use.

Red blinking

The battery is too hot or too cold to be charged without damage. If the battery is too cold it will be charged as soon as it has warmed up sufficiently. If the battery is too hot it should be removed to cool down.

Red light

The battery is damaged or it is a conventional battery which cannot be recharged.



In combination with included external AC/DC power supply (PS65)



Regulatory approvals

EuropeEN62368-1 (CE)
 InternationalIEC62368-1 (CB)

Electromagnetic Emissions

EuropeEN55011, EN55032, level B
 USAFCC15 class B

Electromagnetic Immunity

ESD immunityEN/IEC61000-4-2
 Electromagnetic field immunity EN/IEC61000-4-3
 EFT / BurstEN/IEC61000-4-4
 Surge

EN/IEC61000-4-5

 Conducted Immunity

EN/IEC61000-4-6

 Magnetic Fields

EN/IEC61000-4-8

 Voltage dips, short instrumentations & voltage variations

EN/IEC61000-4-11

 Immunity characteristics

EN55024

Specification external AC/DC power supply (PS65)

Input

Voltage range

100.00 - 240.00VAC ±10%, 50-60Hz

Current

1.70A max.

Stand by power

< 0.21W @ no load
Output
Voltage range

19.00VDC ± 5%

Power

65.00W max.

Current range

3.42 A max.

Protection

Over voltage, over current, short circuit, over temperature

Environmental
Temperature

Operating: 0°C to 40°C
Non-operating: -10°C to 70°C

General
Efficiency

California's Energy Efficiency Level VI

Ripple & Noise

0.30V (p-p)

Standard output connector

DC barrel jack; 5.50 x 2.50 x 11.00mm

Housing dimensions (LxWxH)

95.00 x 50.00 x 25.40mm

Weight

270g

Cable length1600mm ±50mm

Approvals

EuropeCE
 InternationalCB
 USA & CanadacULus
 Australia & New ZealandRCM
 Russia & Eurasian Customs UnionEAC
 KoreaKC
 ChinaCCC
 JapanPSE
 IndiaBIS


Taiwan

BSMI
 MexicoNOM
 ArgentinaIRAM
 South AfricaSABS
 SingaporeSafety Mark
 United KingdomUKCA
 MoroccoCMIM

標準バッテリー充電器RRC-SMB-MBCは世界中で認可を受けています
