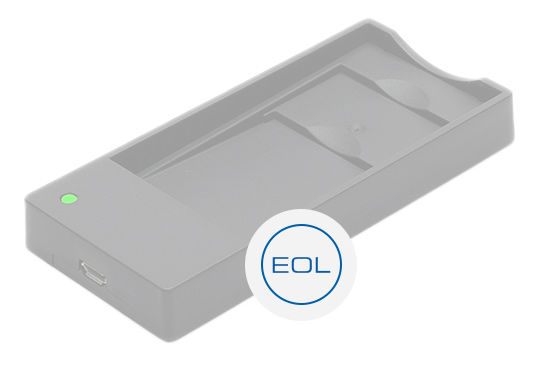

5W Batterieladegerät RRC-SCC-EZP mit Schacht für die Varta EasyPack Batterien S, L, XL und PLUS.

RRC-SCC-EZP

Varta EasyPack S、L、XL、PLUS用
5Wバッテリー充電器

  • シングルベイバッテリー充電器
  • Varta EasyPackバッテリー（S、L、XL、PLUS）に対応
  • プラグ＆プレイで簡単な操作が可能
  • 世界中で使用できる電源アダプター

詳しい情報をお求めですか？

製品を請求する

Downloads RRC-SCC-EZP

SCC-EZP Data Sheet
SCC-EZP Manual

製品データシート RRC-SCC-EZP

Specification RRC-SCC-EZP

Input
Voltage5.00V nom.
Current1.00A nom.
Power5.00W
Output
Voltage

4.20VDC

Current max.

1.00A max. for EZPack L, XL, PLUS
0.50A max. for the EZPack S

Voltage tolerance±1% max.
Protection

Short circuit, Battery over/under temperature, Charger over temperature, Charger timer

Environmental
CoolingConvection cooled
Temperature

Operating: 0°C bis 40°C
Non-operating: -10°C to 70°C

Pressure & Altitude

Operating: 1060hPa to 795hPa (-382m to 2000m)
Non-operating: 1060hPa to 572hPA (-382m to 4570m)

Humidity5% to 95% r.H., non-considering
General
IndicatorMulti-color LED (green, red, orange)
Battery type

VARTA EasyPack (S, L, XL, PLUS)

Green procurementRoHS 2011/65/EU
WEEE 2012/19/EU
Housing dimensions (LxWxH)46.70 x 101.40 x 12.50mm
Weight26g (excluding power supply)

Orange light

The inserted battery is of the correct type and is currently being charged.

Green light

The battery is charged and can be removed for use.

Red blinking

Battery detection phase

Red light

No battery inserted, battery over/under temperature-, charger over temperature-,
battery over voltage-, battery charge timer time-out-error or input voltage too low



In combination with included external AC/DC power supply



Regulatory approvals

EuropeCE

Electromagnetic Emissions

EuropeEN55032 class B + CISPR32 class B
 USAFCC15, class B

Electromagnetic Immunity

ESD immunityEN/IEC61000-4-2
 Electromagnetic field immunity EN/IEC61000-4-3
 EFT / BurstEN/IEC61000-4-4
 Surge

EN/IEC61000-4-5

 Conducted Immunity

EN/IEC61000-4-6

 Magnetic Fields

EN/IEC61000-4-8 + -4-11

Specification external AC/DC power supply

Input

Voltage range

100.00 - 240.00VAC

Current

0.35A max.

Stand by power

< 0.10W @115.00VAC and 230.00VAC

Output
Voltage range

5.00VDC ± 0.25V

Power

5.00W max.

Current range

0 - 1.00A

Protection

Over voltage, over current, short circuit

Environmental
Temperature

Operating: 0°C to 40°C
Non-operating: -20°C to 70°C

HumidityOperating: 10% to 90%
Storage: 5% to 95%
General
Efficiency

California's Energy Efficiency Level VI

Lifetime30000 hours min (acc. to MIL-HDBK-217F)

Ripple & Noise

0.12V max.

Green procurementRoHS2011/65/EU

Standard output connector

USB Micro 5pin

Standard input connectorWall mount type EU, US, AU and UK

Housing dimensions (LxWxH)

54.80 x 29.45 x 44.90mm (without wall-mount plug)

Weight

45g ± 10g

Approvals

EuropeCE
 InternationalCB
 USA & CanadacETLus
 Australia & New ZealandRCM

標準バッテリー充電器RRC-SCC-EZPは世界中で認可を受けています
