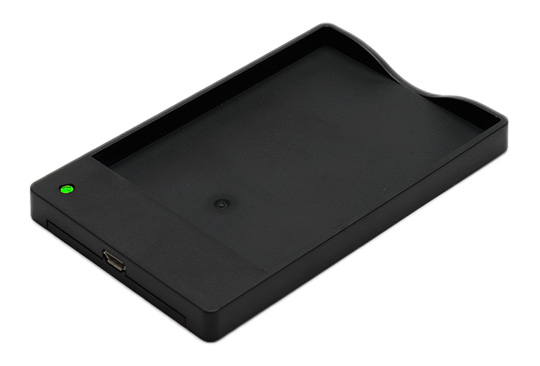

Picture only for reference

RRC-SCC1130

RRC1130用5.00Wバッテリー充電器

  • シングルベイバッテリー充電器
  • 標準バッテリーパックRRC1130に対応
  • 充電プロセスが最適化されているので、RRCバッテリーのサイクル寿命を伸ばすことができます
  • プラグ&プレイで簡単な操作が可能
  • 世界中で使用できる電源アダプター

詳しい情報をお求めですか?

製品データシート RRC-SCC1130

Specification RRC-SCC1130

Input
Voltage5.00V nom.
Current1.00A nom.
Power5.00W
Output
Voltage

4.35VDC

Current

1.00A max.

Voltage tolerance±1% max.
Current tolerance

±10% max. @1.00A

Protection

Short circuit, Battery over/under temperature, Charger over temperature, Charger timer

Environmental
CoolingConvection cooled
Temperature

Operation: 0°C to 40°C
Storage: -20°C to 80°C

Pressure & Altitude

Operation: 1060hPa to 795hPa (-382m to 2000m)
Storage: 1060hPa to 572hPA (-382m to 4570m)

Humidity10% to 90% r.H., non-condensing
General
IndicatorMulti-color LED (green, red, orange)
Battery types

Standard battery RRC1130

Green procurementRoHS 2011/65/EU, 2015/863/EU
WEEE 2012/19/EU
Chinese RoHS
Housing dimensions (LxWxH)

66.80 x 106.61 x 8.48mm

Weight25.00g (excluding power supply)

Orange light

The inserted battery is of the correct type and is currently being charged.

Green light

The battery is charged and can be removed for use.

Red blinking

Battery detection phase

Red light

No battery inserted, battery over/under temperature error, charger over temperature error, battery over voltage error, battery charge time-out error, input voltage too low



In combination with included external AC/DC power supply



Regulatory approvals

Europe

EN 60950-1 (CE)

 International

IEC 60950-1 (CB)

Electromagnetic Emissions

Europe

EN55011, EN55032, class B

 USAFCC15, class B

Electromagnetic Immunity

Electrostatic discharge

EN/IEC61000-4-2


RF electromagnetic fields

EN/IEC61000-4-3
 EFT / BurstEN/IEC61000-4-4
 Surge

EN/IEC61000-4-5



Conducted RF disturbance

EN/IEC61000-4-6

 Electromagnetic Fields

EN/IEC61000-4-8

 Voltage Dips and Interrupts

EN/IEC61000-4-11

Specification external AC/DC power supply

Input

Voltage

100.00 – 240.00VAC ±10%, 50-60Hz

Current

0.30A max.

Stand by power

No load <0.10W

Output
Voltage

5.00VDC ±5%

Power

5.00W cont.

Current

1.00A max.

Protection

Over current, short circuit

Environmental
Temperature

Operation: 0°C to 40°C
Storage: -20°C to 80°C

Humidity

Operation: 10% to 90% r.H., non-condensing

Storage: 5% to 95% r.H., non-condensing

Altitude

Operation: <2000m

Storage: <2000m

General
Efficiency

California's Energy Efficiency Level VI

Line / Load regulation

±1% / ± 5%

Ripple & Noise

200.00mV (p-p)

Standard output connector

Micro USB

Housing dimensions (LxWxH)

43.55 x 40.90 x 45.30mm for US/CA/MX/JP

43.55 x 40.90 x 60.20mm for EU/RU

43.55 x 40.90 x 37.40mm for UK

43.55 x 40.90 x 60.20mm for KR

43.55 x 40.90 x 49.00mm for AU

43.55 x 40.90 x 45.50mm for CN

Weight

70g max.

Cable length 1.00m

Approvals

EuropeCE
 InternationalCB
 USA & Canada

cULus / cETLus

 MexicoNOM


Australia & New Zealand

RCM / SAA
 KoreaKC
 ChinaCCC
 JapanPSE


Russia (Customs Union)

EAC
 United KingdomUKCA

標準バッテリー充電器RRC-SCC1130は世界中で認可を受けています
