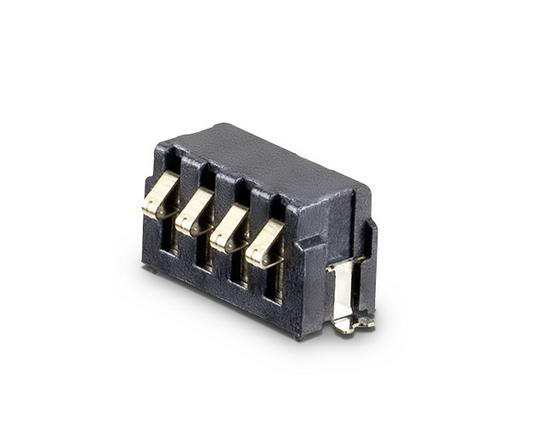

RRC-MC11-90-2
バッテリー用コネクター
- RRC標準バッテリーパックRRC1120、RRC1130に対応
- バッテリーへの最大充電・放電電流が3.00A
- スプリング接点付き4ピン・オスコネクター
- 2.5mmのピッチ
- RoHS、REACH対応
詳しい情報をお求めですか？
Downloads RRC-MC11-90-2
製品データシート RRC-MC11-90-2
Specifications
| Ratings | |
|---|---|
| Current | 3.00A max. / pin |
| Voltage | 12.00VDC |
| Materials | |
|---|---|
| Housing | Thermoplastic High |
| Contacts | Copper Alloy |
| Plating | G/F on contact area |
| Operating Temperature | -40°C to +105°C |
| Electrical Requirements | |
|---|---|
| Contact Resistance | 0.04Ohm max. |
| Insulation Resistance | 0.10Ohm min. @ 500VDC / 2min |
| Dielectric withstanding voltage | No breakdown @ 500V RMS |
| Mechanical Requirements | |
|---|---|
| Contact Retention Force | 300gf min. / pin |
| Dimensions (LxWxH) | 11.50mm x 5.0mm x 6.5mm |
| Weight | <1g |
| Physical Requirements | |
|---|---|
| Solder Temperature | 260°C ± 5°C |
| Immersion Period | 5sec (EIA-364-56C) |
| Regulatory Approvals | |
|---|---|
| Green Procurement | RoHS REACH |
| RRC-MC11-90-2 | |
|---|---|
| RRC part number | 210520 |
| PCB mounting | SMT 90° |
| Packaging | |
|---|---|
| 700 connectors per reel | |
| 7 reels per carton | |
